Description

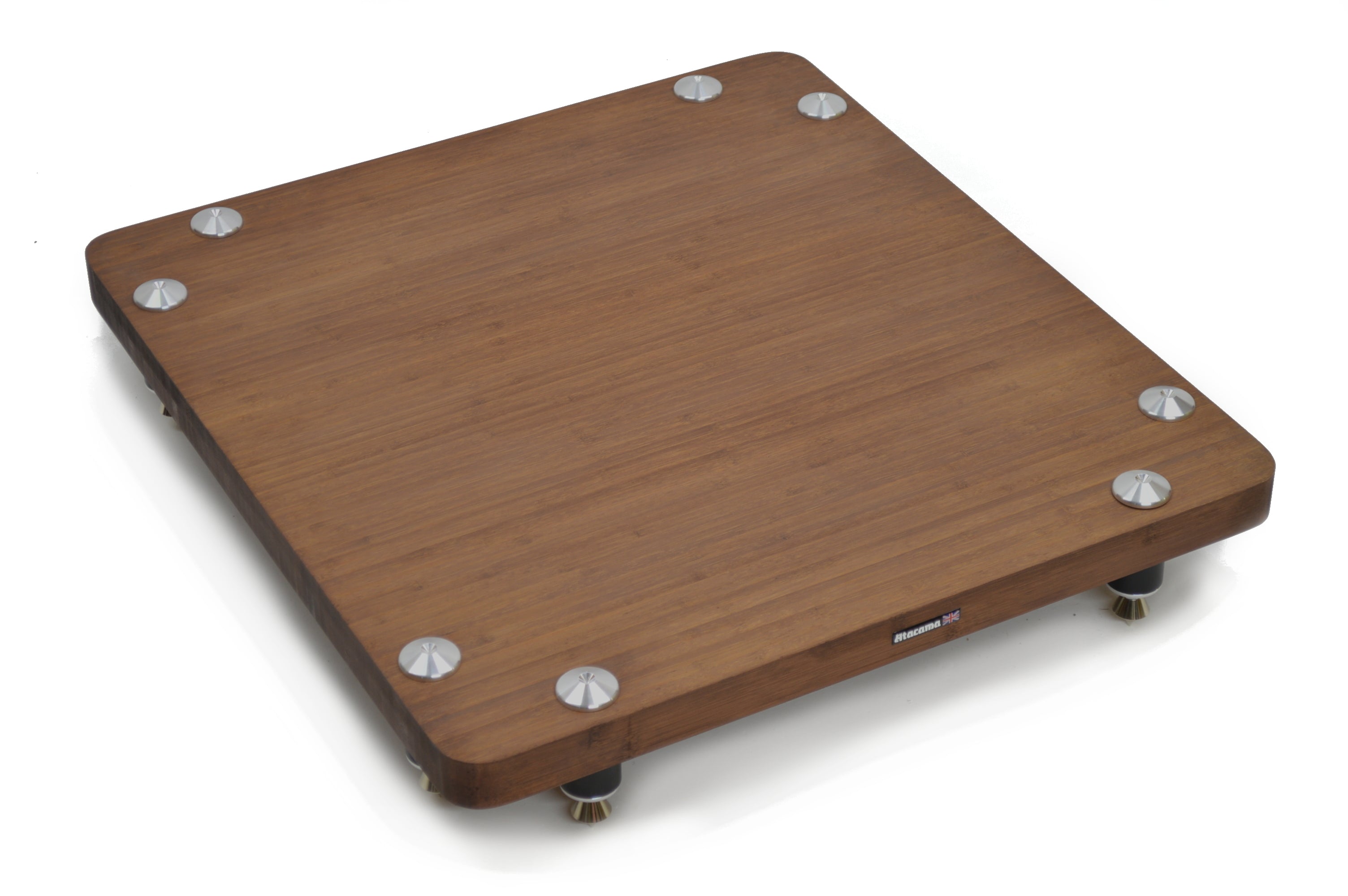

These solid carbonised bamboo modules will make the perfect accompliment to mono block amplification, offering both support and enhanced performance.
Designed primarily to support Mono block amplifiers, Atacama Monoplinth Eco 60/65 are supplied in pairs (singles are available upon request) and use mechanical resonance technology developed from the multi-award winning Atacama Evoque Eco SE series of hifi supports.
Each module features V.R.D.C. (Vectored Resonance Displacement Channels) cut into the underside of each Bamboo panel. These channels have been designed to direct mechanical energy away from the supported amplifier. In addition, sets of A.S.I.S.T. gaskets and isolation components (Atacama Sonic Isolation System Technology) are built into each of the legs which both dampen and help direct this energy away, thus allowing this mechanical grounding to dissipate the unwanted resonance to the floor.
Weight capacity per module. 70kg.
Each pair of Monoplinth modules will have a total of 16 legs, all on isolation spikes. If being placed on a delicate floor covering four sets of Atacama HD-L Spike shoes (sold separately) should be used to protect the floor.
Monoplinths can, under specific circumstances, be stacked (additional leg components will need to be purchased separately). Please contact your Atacama audio stockist or the Atacama sales team (post@atacama-audio.co.uk) for advice should you wish to use them in this configuration. Please be sure to have the weights and dimensions of the equipment that you wish to place on the modules. This option is available in the UK. For international availability of the optional stacking components, contact your distributor or local Atacama retailer.
Please note: - Bamboo is a natural material so colour, texture, grain and age will give a variable appearance to each shelf. This is normal and adds to the intrinsic beauty of the material. Because of this, adding Monoplinths to an existing or new Atacama bamboo rack setup, batch /colour tonal differences will be present. If you would like to minimise this variation, where possible order your Monoplinths and standard Atacama bamboo rack shelving at the same time as a complete support system with enough levels to fulfil possible future requirements.
There may be some darkening of the Bamboo over time. This is normal and part of the materials maturing process.
Monoplinths are made in the UK.
The Leg tube colour is Satin Black.
These modules are supplied in the DARK BAMBOO FINISH.
Dimensions
Overall Width 600mm (23.6”)
Overall Depth 650mm (25.59”)
Overall Height 110mm (8.26”)
Width between top caps, Inner caps 365mm (14.37”), Outer caps 500mm (19.68”)
Depth between top caps Inner caps 550mm (21.65”), Outer caps 415mm (16.33”)
Height Under Module 70mm (2.75”)
Thickness of Bamboo 40mm (1.57”)
All Sizes are approximate.
